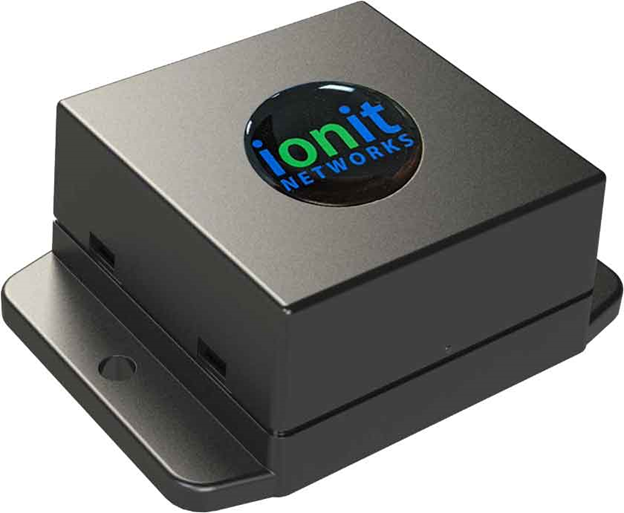

9071 Ultrasonic Fluid Level sensor
The IONIT model 9071 is a next-generation wireless, battery-powered ultrasonic fluid level device that makes measuring and remotely monitoring fluid levels easy and accurate. Using RF communications, the 9071 transmits fluid readings regularly to any IONIT 9400 Hub and relayed to the IONIT Cloud software. Ideal for remotely monitoring domestic and commerical heating oil, other oil products, water, waste water and more. Works with traditional style and double-walled tanks.
- Length: 1.55 in (4.0 cm)
- Width: 2.75 in (7.0 cm)
- Height: 5.59 in (14.2 cm)
- Weight: 0.17 lbs (0.08 kg)
- Box Length: 2.25 in (5.7 cm)
- Box Width: 3.25 in (8.3 cm)
- Box Height: 6.75 in (17.2 cm)
- Box Weight: Less than 1 lbs (<0.45 kg)
- Fast Install: Plug & play
- QR code for quick setup and geo-locating
- Onboard ultrasonic fluid level sensor
- Onboard temperature sensor
- Temperature Range: 14 to 140 degrees F
- Radio Frequency: 915 MHz
- Transmission Occurrence: Once per Hour
- Data Payload Size: 32 Bytes
- Expected battery life: 5 years
- 1- Year Limited Warrenty
- Brochure: ION-9071 Ultrasonic Fluid Level
- Install Guide: ION-9370 Direct-Mount Kit (for tanks without available bung)
